MWS S190 2/3 Deck Mobile Rinser

Screen Size:
20' x 5'
Weight:
36,000kg
Engine:
CAT C4.4
Overview

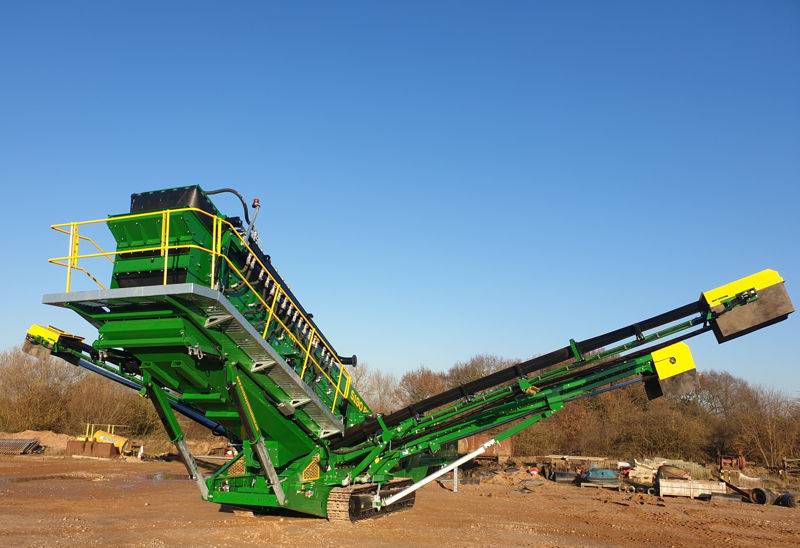

The MWS S190 Mobile Rinser is an extremely adaptable, high capacity mobile washing unit. As two machines in one, it can be easily converted to dry screen mode.

The S190 3 deck comes complete with 3 side conveyors and split catchbox for up to 3 grades of aggregate and 2 grades of sand. The rinser’s fast set up and relocation abilities, make it ideal for contractors and hire fleets.

It comes complete with large capacity 15′ hopper, remote control tipping grid, feed conveyor, and a 20′ x 5′ heavy duty, high energy rinser screenbox.

Features

20' x 5' heavy duty high energy 2 bearing rinser screenbox.
CAT C4.4 131Hp engine.
Integrated hydraulic folding stockpiling conveyors.
Remote control tipping grid.
Fast on site setup time – 10 minutes.
Recommended flow and pressure - 4100 to 6100 lpm (1100 to 1600 us gal/min)/2 bar (30 psi) at manifold.
Easily converted to dry screen mode.
8 independently controlled spray bars on each deck.
Extra coupling facility to run additional equipment such as MWS sand screws and stackers.
Hydraulic catch box - allows user to easily lift and lower the catch box.
Large screen deck - 20’ x 5’ top & middle deck, 18’ x 5’ bottom deck.

Tech Specs

Engine
CAT C4.4 131Hp
Transport Height
3.45m
Transport Length
18.2m (15’ Hopper)/17.54m (12’ Hopper)
Transport Width (3 deck)
500m conveyor - 3.06m/600m conveyor - 3.22m
Weight (3 deck tracked)
36,000kg
Stockpile Height Side Conveyor
5.1m
Stockpile Height Auxillary Conveyor (3 deck tracked)
4.7m
Screenbox Dimensions
20’ x 5’ (6100mm x 1520mm)
Download Full Specs
