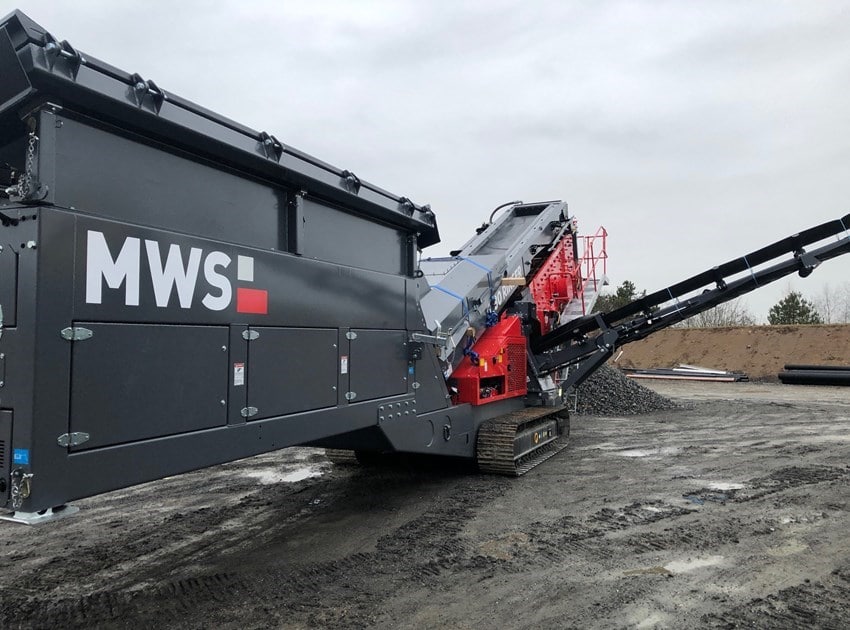

MWS S130 2/3 Deck Mobile Rinser

Screen Size:
14' x 5'
Weight:
29,000kg
Engine:
CAT C4.4
Overview
The MWS S130 Rinser’s fast set up and relocation abilities, make it ideal for contractors and hire fleets. As two machines in one, this rinser can be easily converted to dry screen mode.

The S130 comes complete with up to 3 side conveyors and split catch box for up to 4 grades of aggregates and 2 grades of sand. The rinsers fast set up and relocation abilities, make it ideal for contractors and hire fleets.

It comes complete with large capacity 15′ hopper, remote control tipping grid, feed conveyor, and a 20′ x 5′ heavy duty, high energy rinser screenbox.

Features

14' x 5' heavy duty high energy 2 bearing rinser screenbox.
CAT C4.4 100Hp engine.
Integrated hydraulic folding stockpiling conveyors.
Remote control tipping grid.
Fast on-site setup time – 10 minutes.
Recommended flow and pressure - 3800 to 4500 lpm (1000 to 1200 us gal/min)/1.75 to 2 bar (25 to 30 psi)
Easily converted to dry screen mode.
8 independently controlled spray bars on each deck.
Extra coupling facility to run additional equipment such as MWS sand screws and stackers.
Hydraulic catch box - allows user to easily lift and lower the catch box.
Large screen deck - 14’ x 5’ top & middle deck, 12’ x 5’ bottom deck

Tech Specs

Engine
CAT C4.4 100Hp
Transport Height (3 deck)
3.4m
Transport Length (3 deck)
16.52m (15’ Hopper)/15.61m (12’ Hopper)
Transport Width (3 deck)
500mm aux conveyor - 3.06m/600m aux conveyor - 3.24m
Weight (3 deck tracked)
29,000kg
Stockpile Height Side Conveyor
4.6m
Stockpile Height Auxiliary Conveyor (3 deck tracked)
4.7m
Screenbox Dimensions
14’ x 5’ (4270mm x 1524mm)
