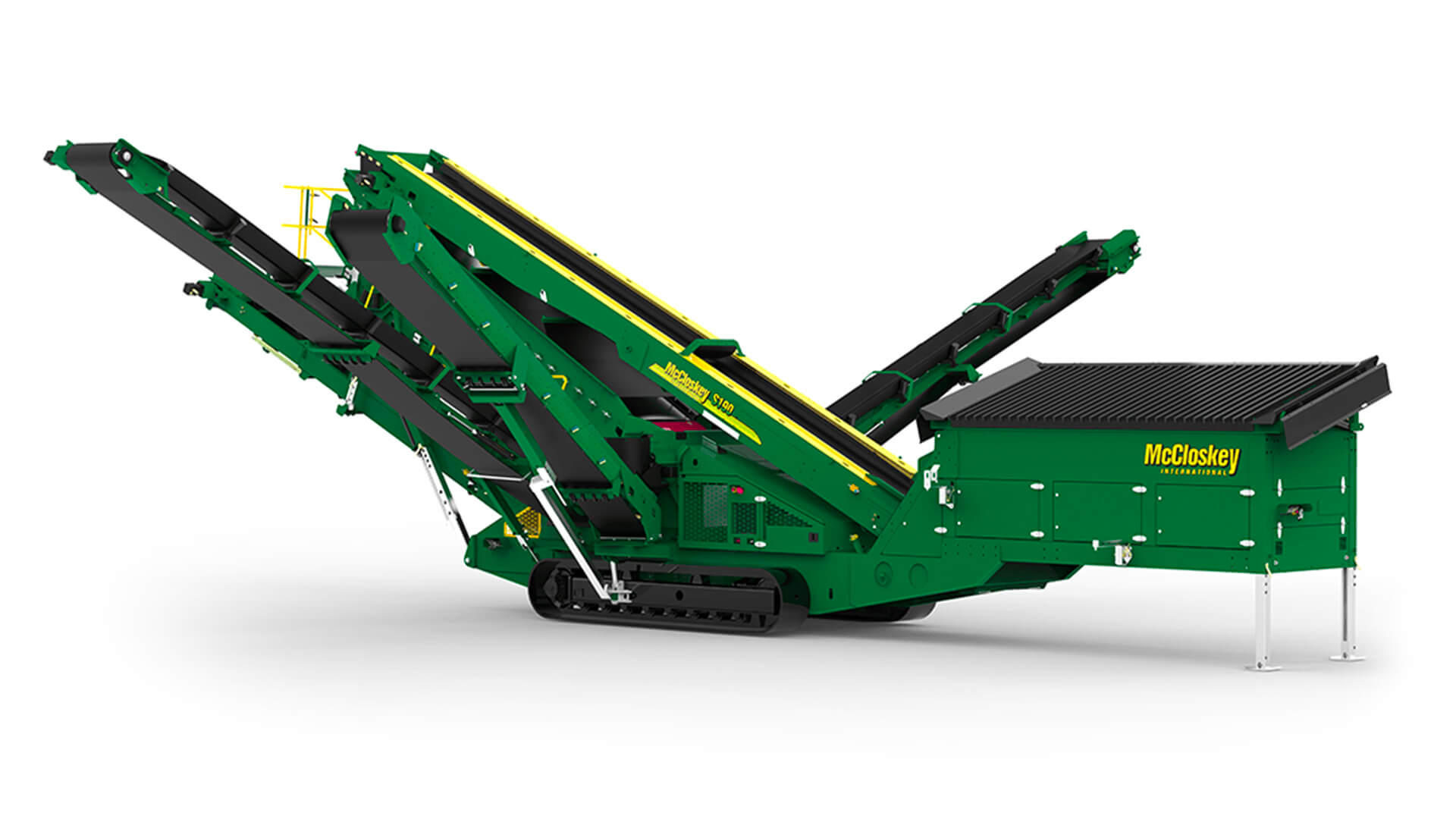

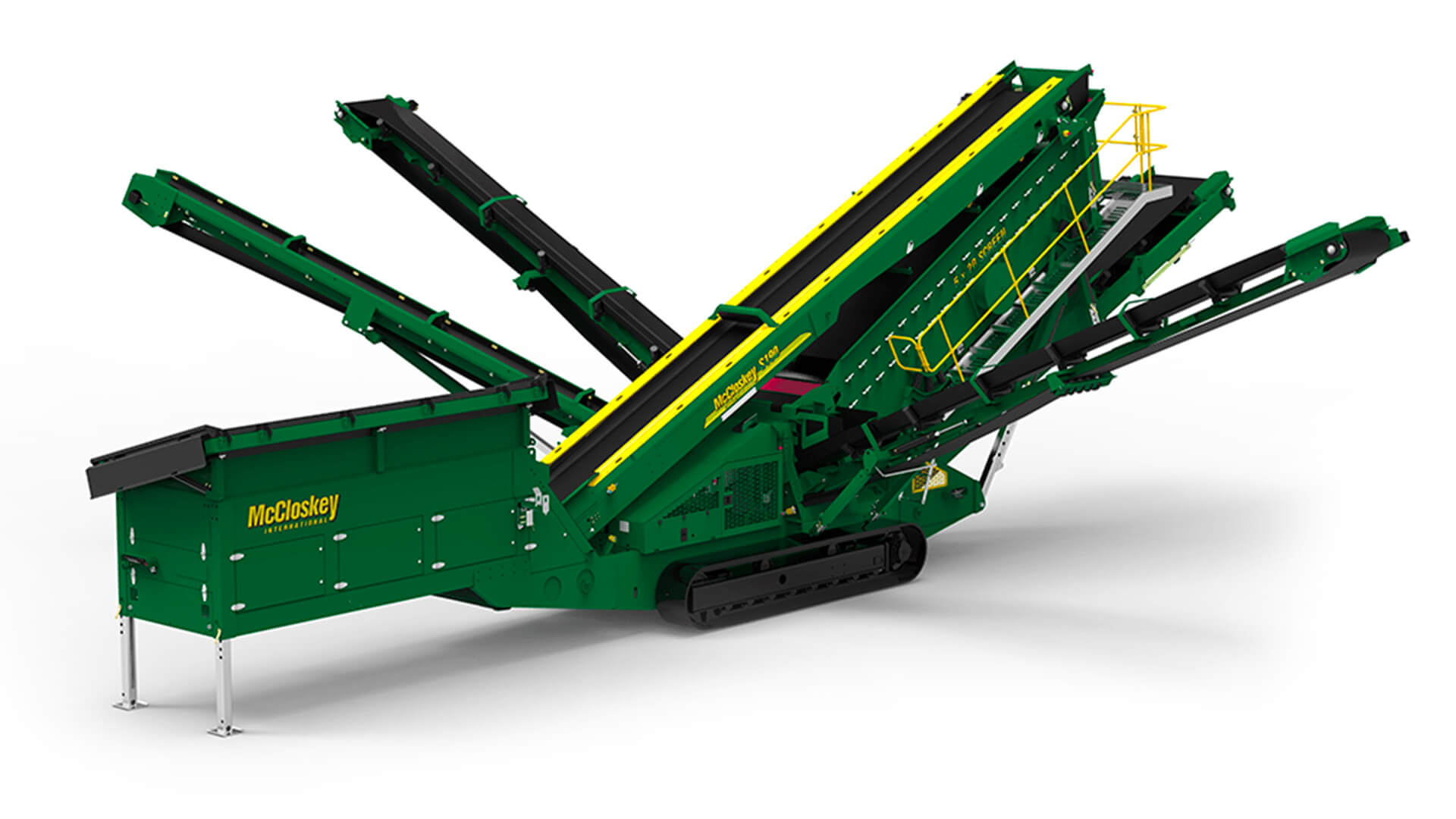

McCloskey S130-3 Screener

Screen Size:
14' x 5'
Weight:
29,000kg
Engine:
CAT C4.4
Power Options:
Dual Power Available
Overview

The McCloskey S130 is a high energy screener used across a wide range of applications, including aggregate, coal, crusher circuits and wood chips.

The S130 is renowned for its fine sand screening and is impressing customers worldwide with its production capacities.

With this machine, you get class-leading S-Range features like the aggressive high energy screenbox and user friendly operation.

The S130’s unique size is designed to meet demands of operators who require significantly more screening capacity than a 10’ or 11’ screenbox, but may not require the higher capacity of a 20’ plant.

Features

14' x 5' heavy duty high energy 3 deck screenbox.
CAT C4.4 130Hp engine.
Integrated hydraulic folding stockpiling conveyors.
3 deck auxiliary conveyor attaches to machine for one unit transport.
Remote control tipping grid.
Fast on-site setup time – 15 minutes typically.

Tech Specs

Engine
CAT C4.4 130Hp
Transport Height
3.4m
Transport Length
15.61m (12’ Hopper) 16.52m (15’ Hopper)
Transport Width
3.06m
Weight
29,000kg
Stockpile Height Tail Conveyor
3.87m
Stockpile Height Side Conveyor
4.6m
Screenbox Dimensions
14’ x 5’ (4270mm x 1524mm)
Download Full Specs
