McCloskey R155 Screener

Screen Size:
16’ x 5'
Weight:
29,860kg
Engine:
CAT C4.4
Overview

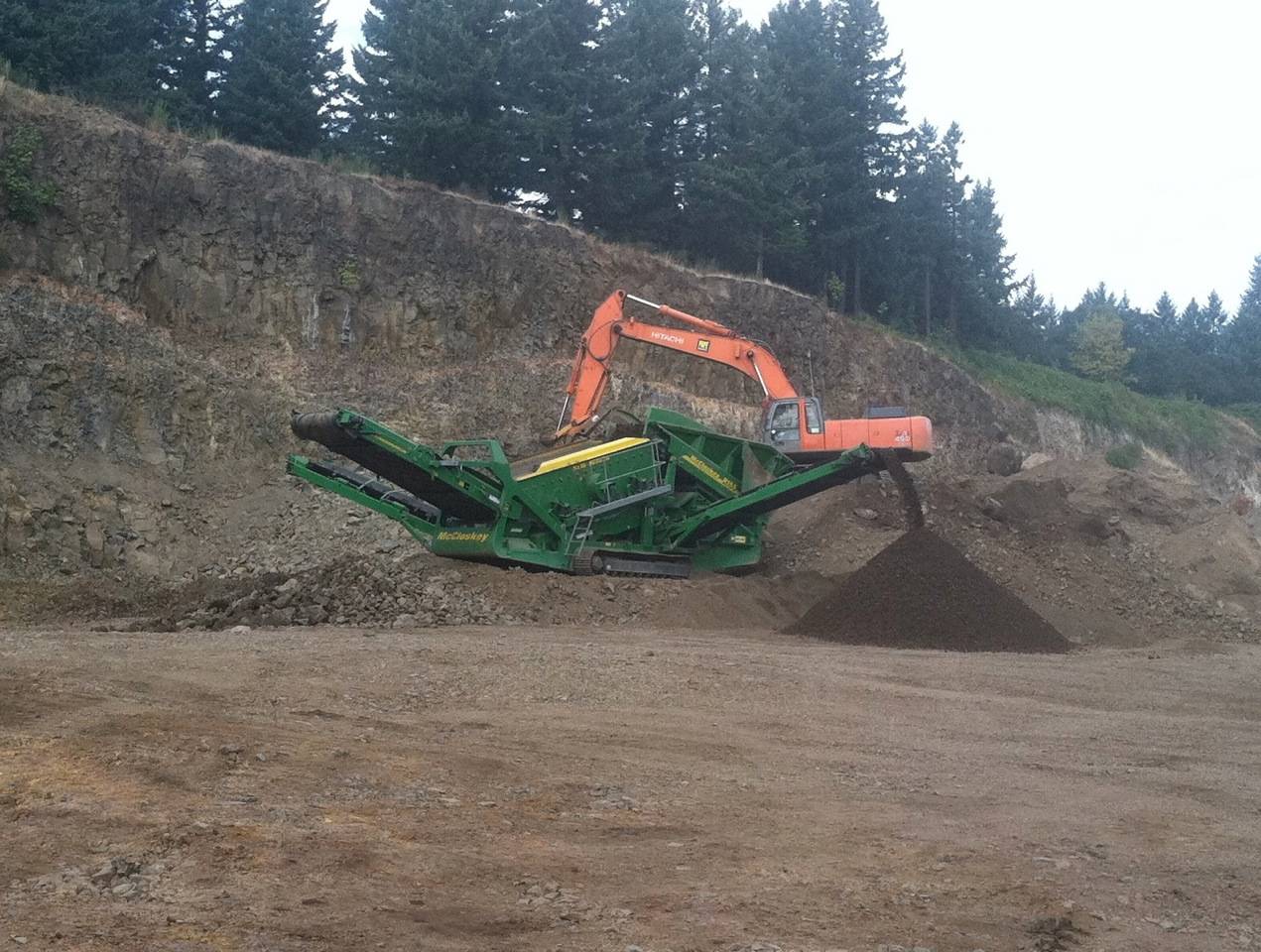

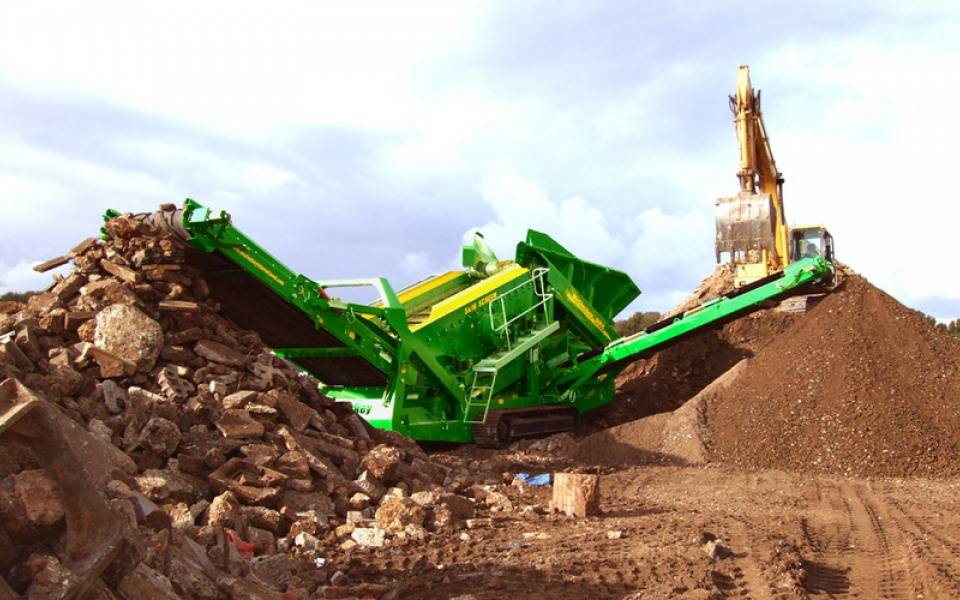

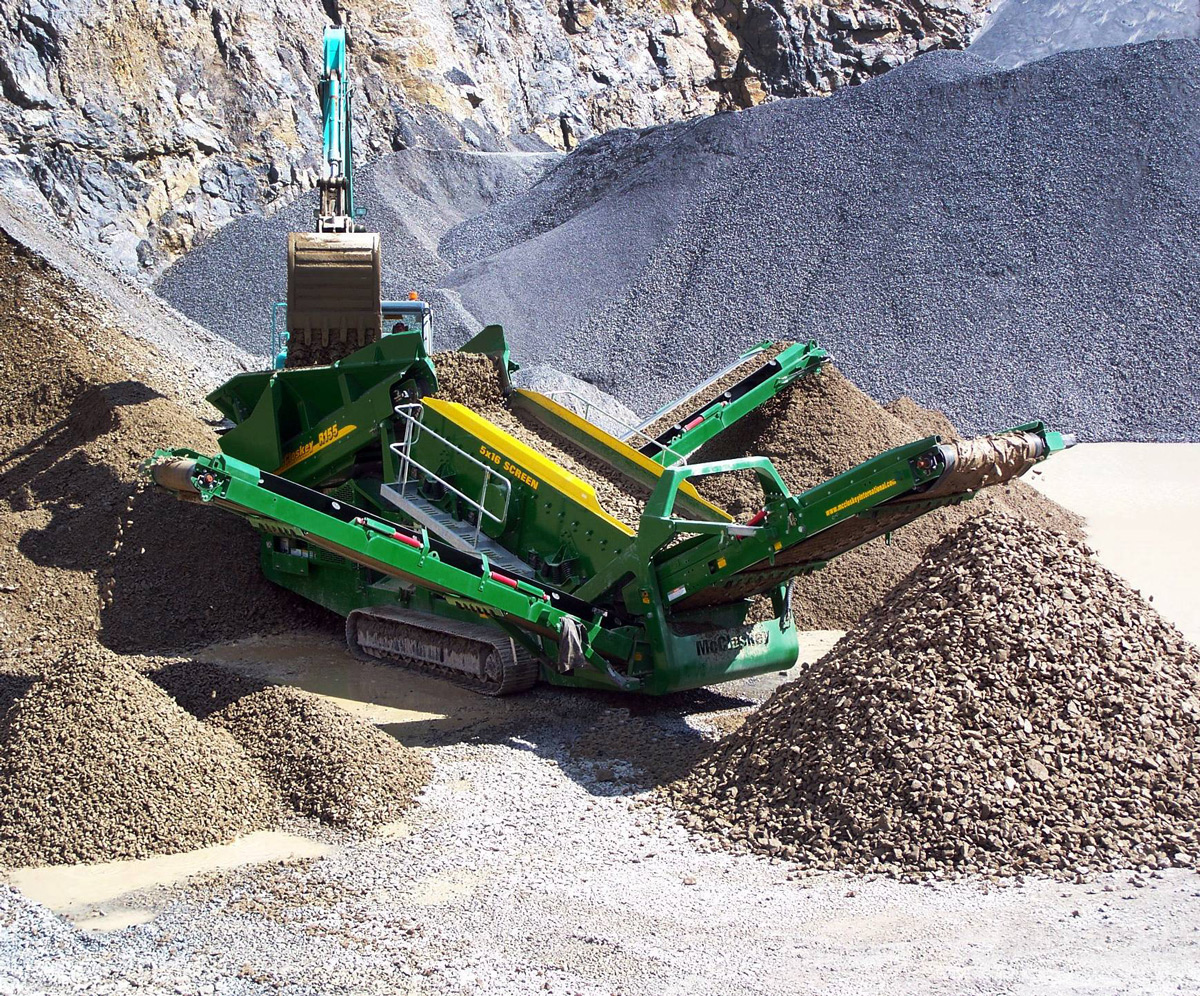

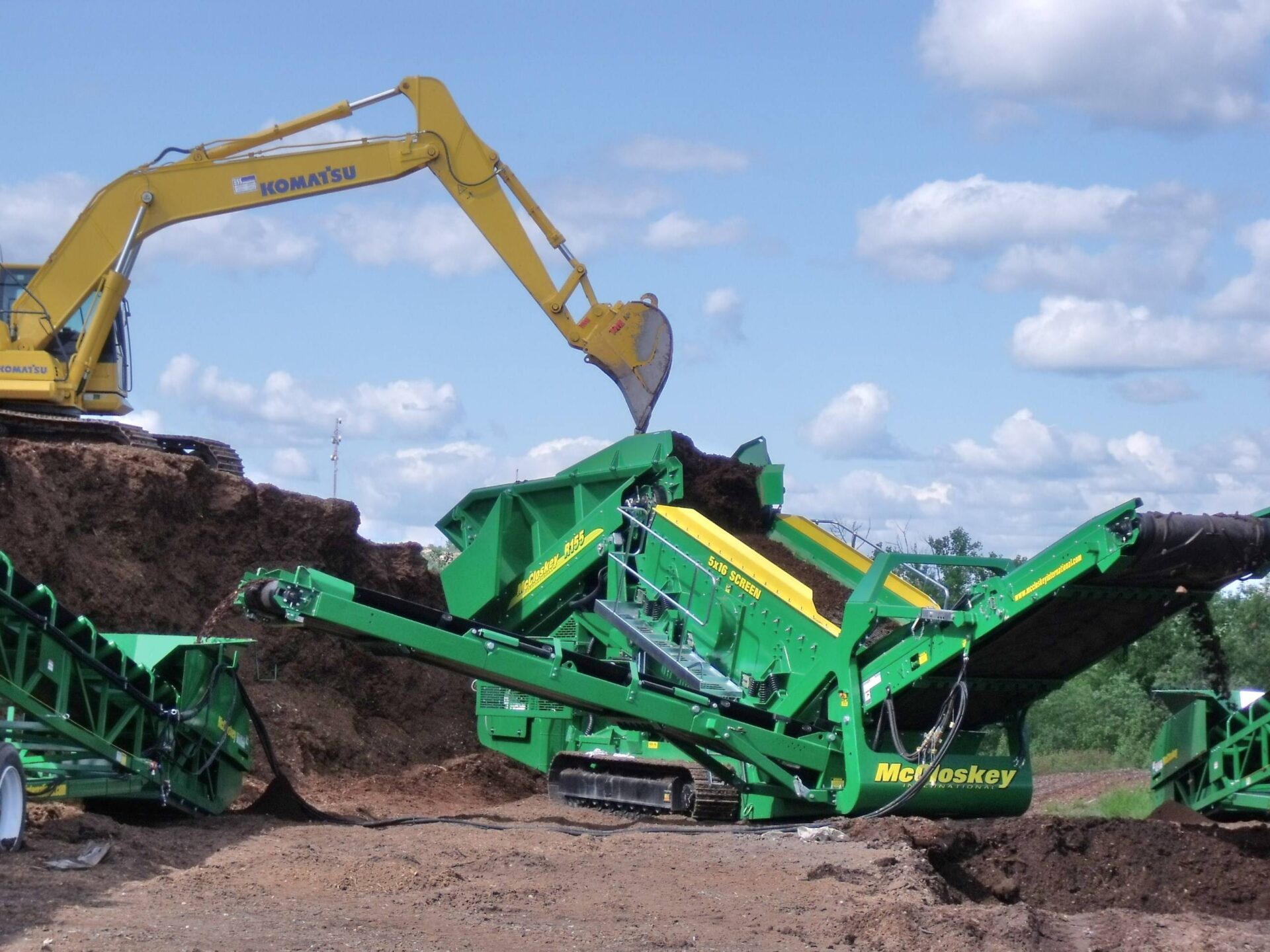

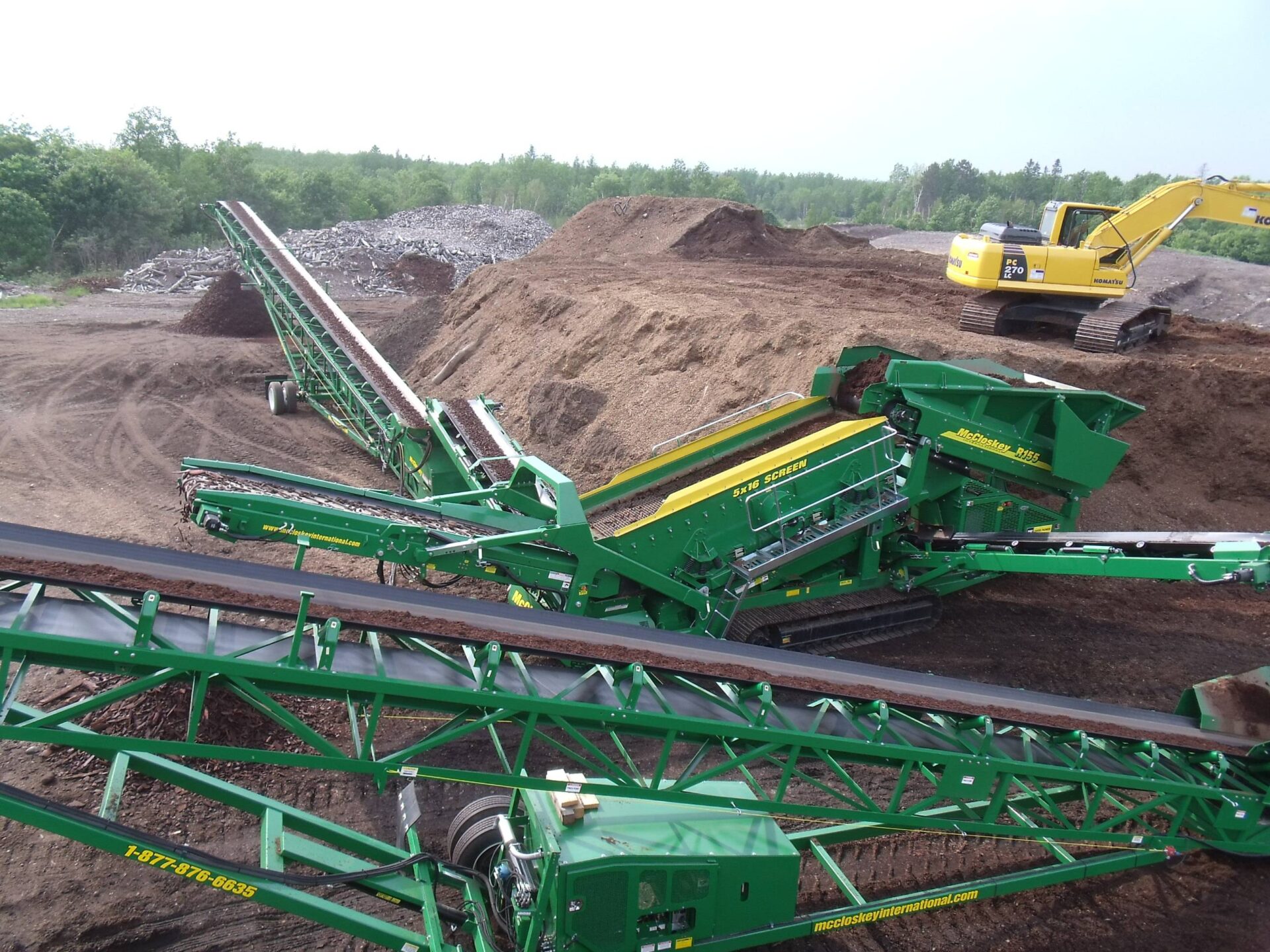

The McCloskey R155 high energy screener is a tough, robust screening tool designed to cope with the heaviest of applications. Features a longer hopper and an extended tail conveyor to provide maximum load flexibility to customers and accommodate a larger variety of loaders that can work in a variety of sites around the world.

The 16ft target is 25% larger, allowing for more material and no spillage, making this R155 an excellent mobile solution for material handling operations.

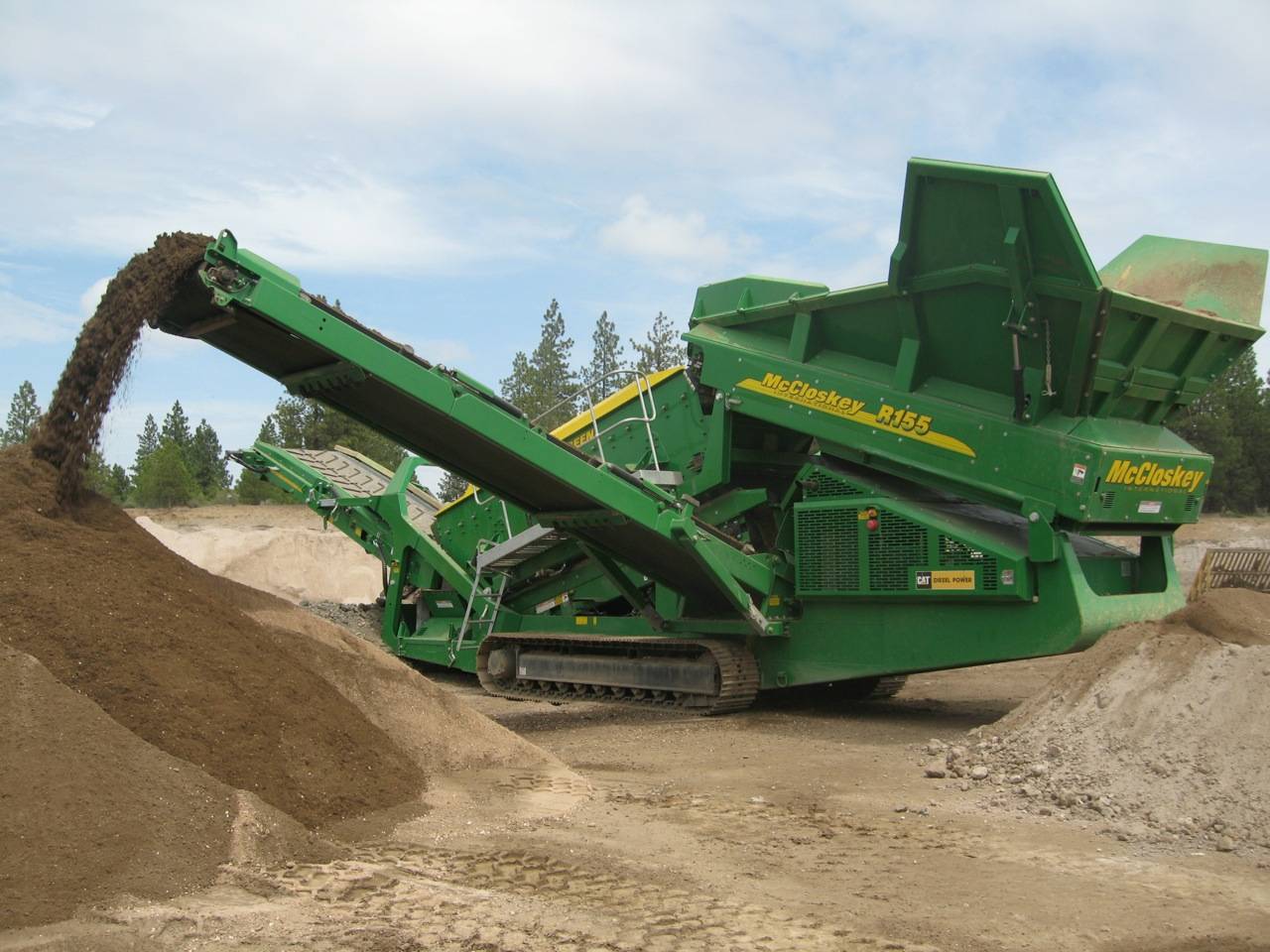

In the two product position the extended tail conveyor will increase the discharge height to 12’ 3” and feed directly into a C2 or C3 cone crusher.

Features

16’ x 5’ high energy 2 bearing screenbox.
CAT C4.4 130Hp engine.
Large open engine bay.
Oversized heavy duty belt as standard.

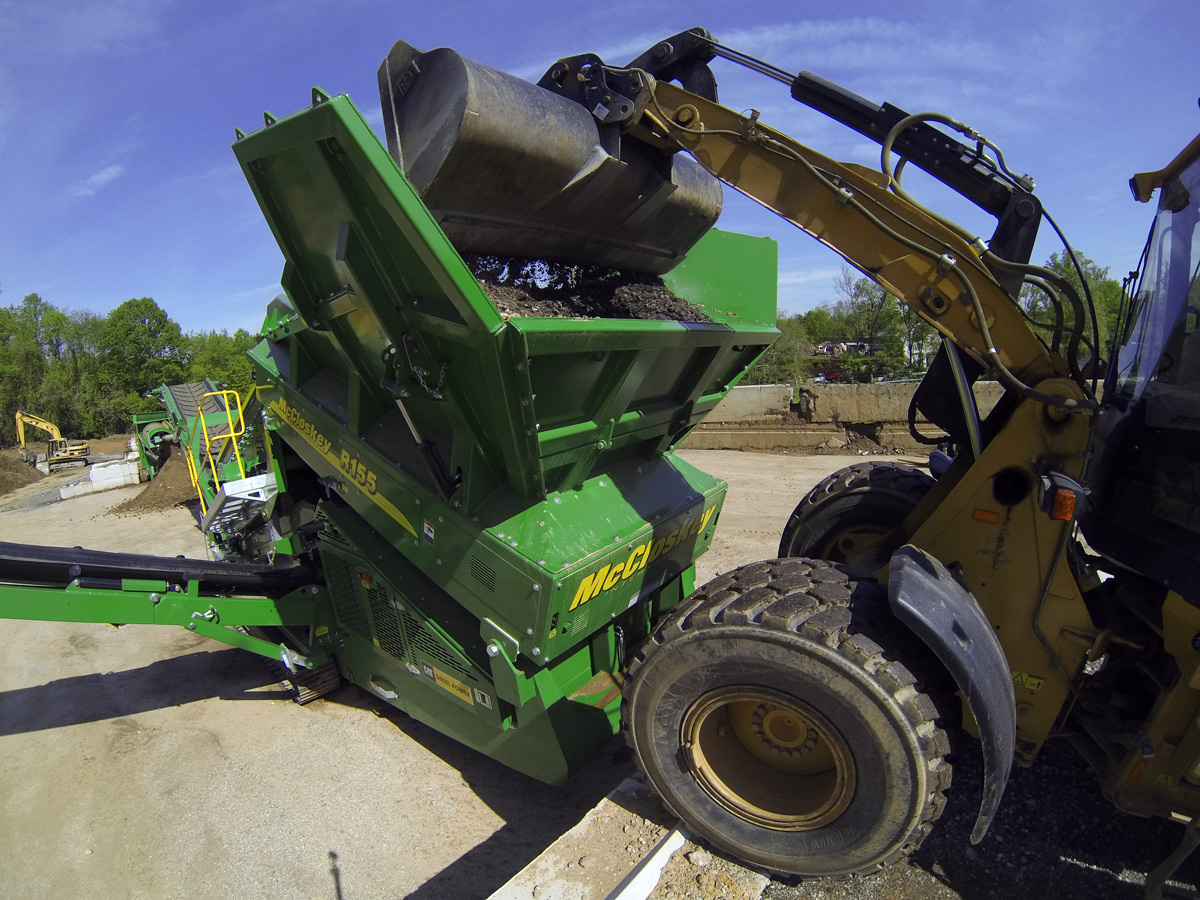

Direct feed hopper.
Screen raises for easy access to bottom deck.

Tech Specs

Engine
CAT C4.4 130Hp
Transport Height
3.4m
Transport Length
15.3m
Transport Width
2.9m
Weight
29,860kg
Stockpile Height Extended Tail Conveyor
3.75m
Stockpile Height Side Fines Conveyor
3.96m
Stockpile Height Side Mid Conveyor
3.6m
Screenbox Dimensions
16’ x 5' (4880mm x 1525mm)
