McCloskey I34 Compact Crusher

Impactor Size:
900mm x 820mm
Weight:
23,600kg
Engine:
Volvo D8
Overview

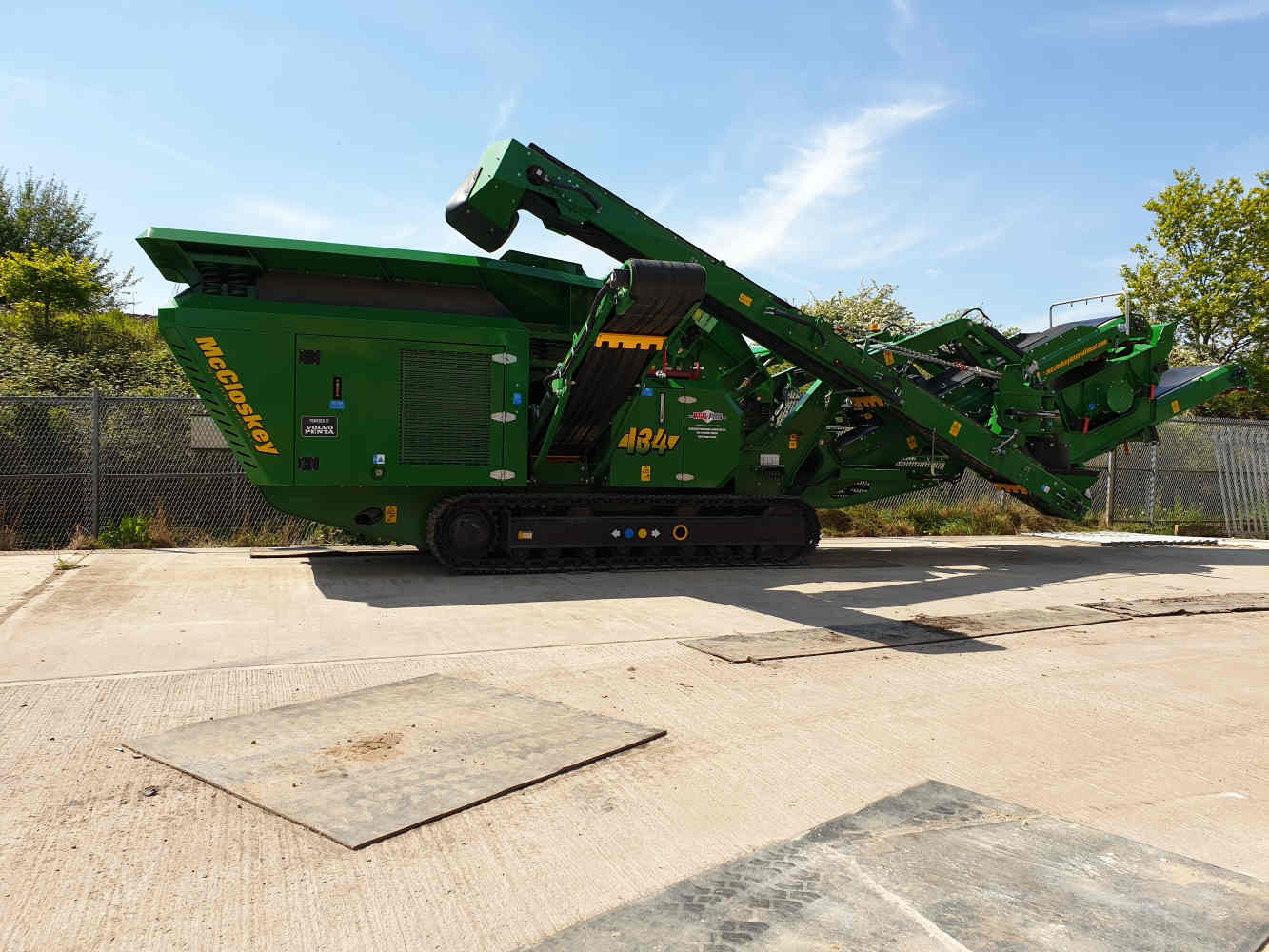

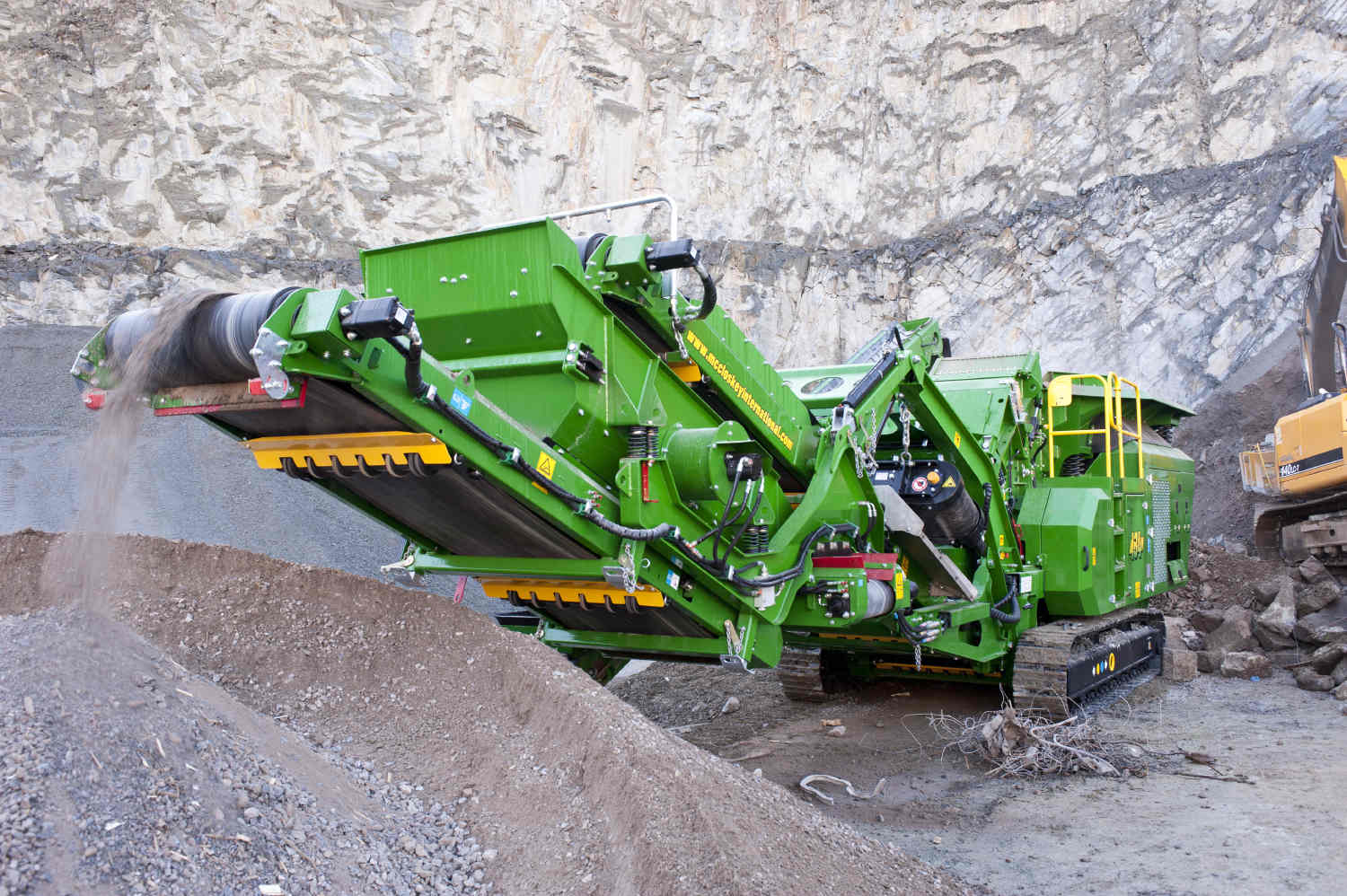

The McCloskey I34 compact impact crusher is the perfect solution for projects with small footprints but big requirements.

These compact, mobile crushers are suited particularly to construction and demolition recycling, asphalt recycling, and aggregates.

The I34 is a versatile, mobile crusher that is able to nimbly move around in small spaces, and continue moving while crushing.

Less than 2.5m wide, the crushers can be transported easily from site to site.

Features

900mm diameter x 820mm wide impactor.
Volvo D8 252Hp engine.
I-beam plate fabricated chassis construction.
Open chassis design for ease of maintenance.

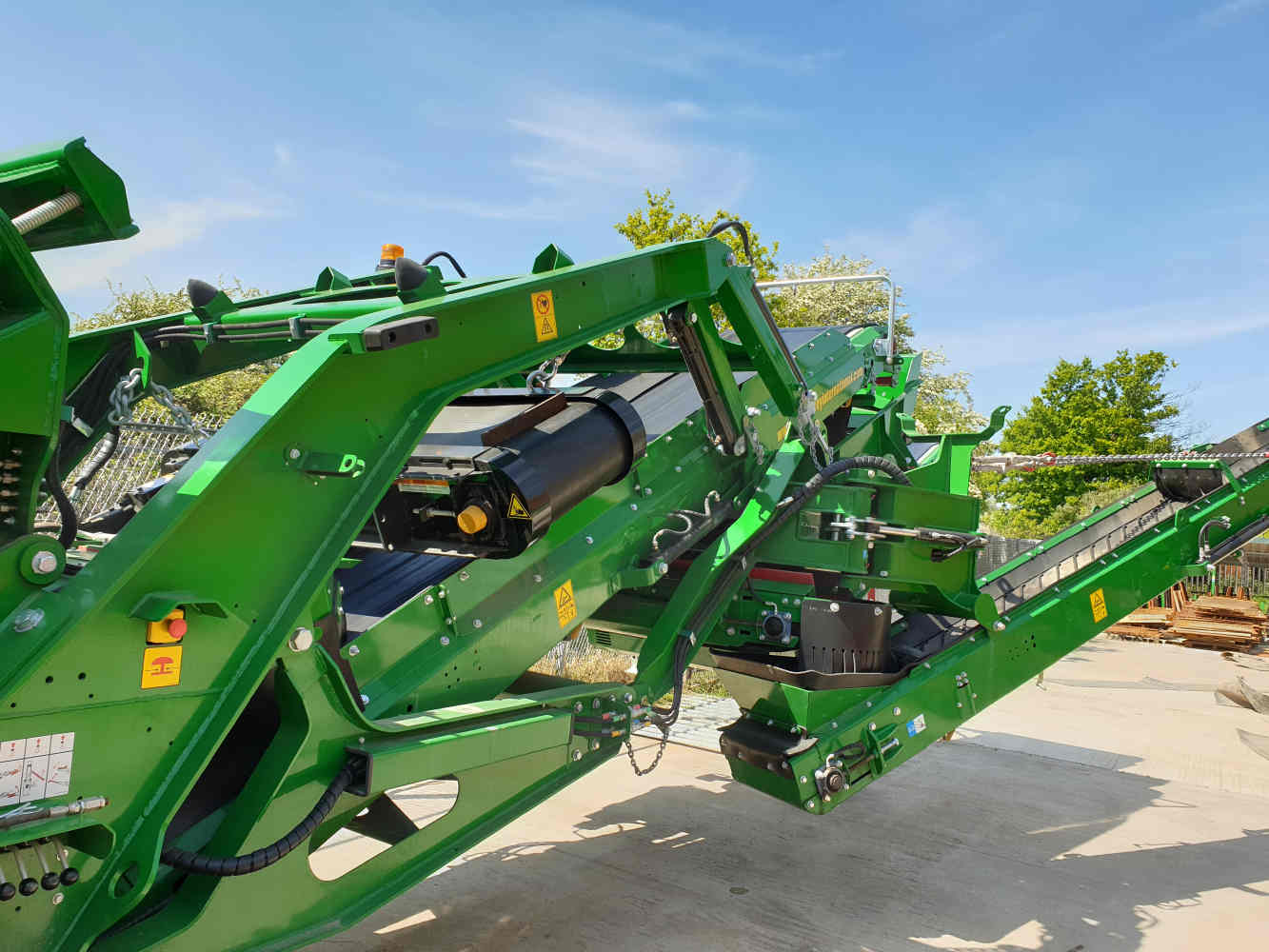

Swing out radial return conveyor.
Integrated hydraulic folding stockpiling conveyors.
Apron adjustment to suit either secondary or primary crushing.
Fast setup time.

Tech Specs

Engine
Volvo D8 252Hp
Transport Height
2.97m
Transport Length
9.32m
Transport Width
2.49m
Weight inc. magnet & dirt conveyor
23,600kg
Impact Rotor
900mm x 820mm
Stockpile Height Side Conveyor
2.58m
