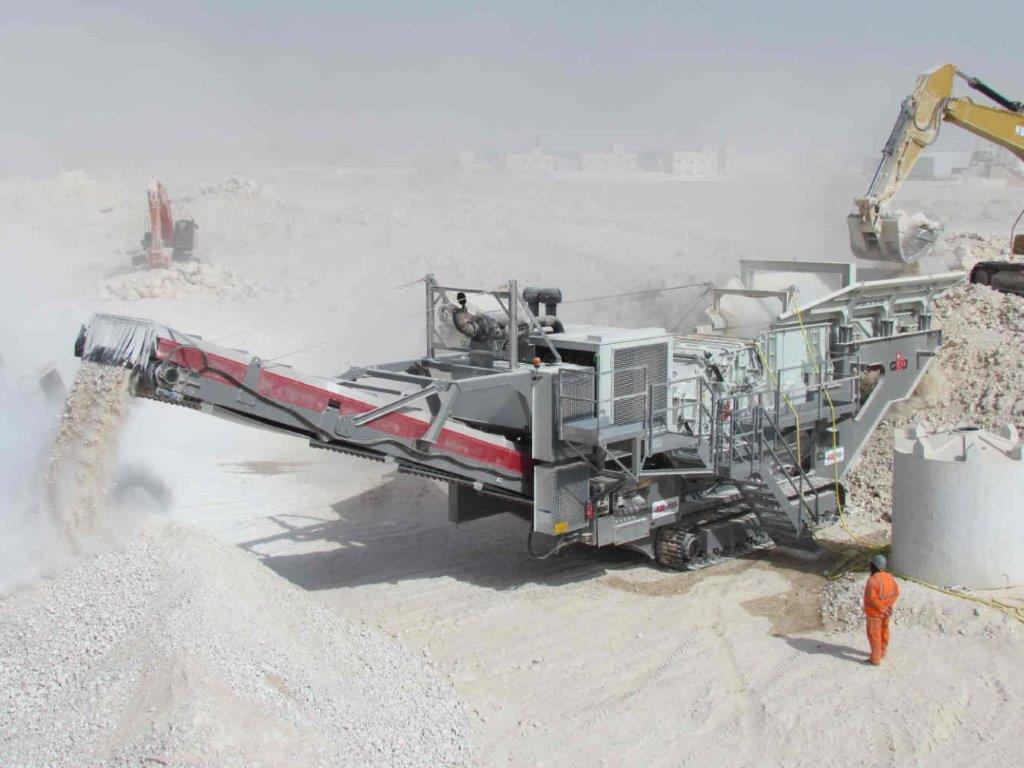

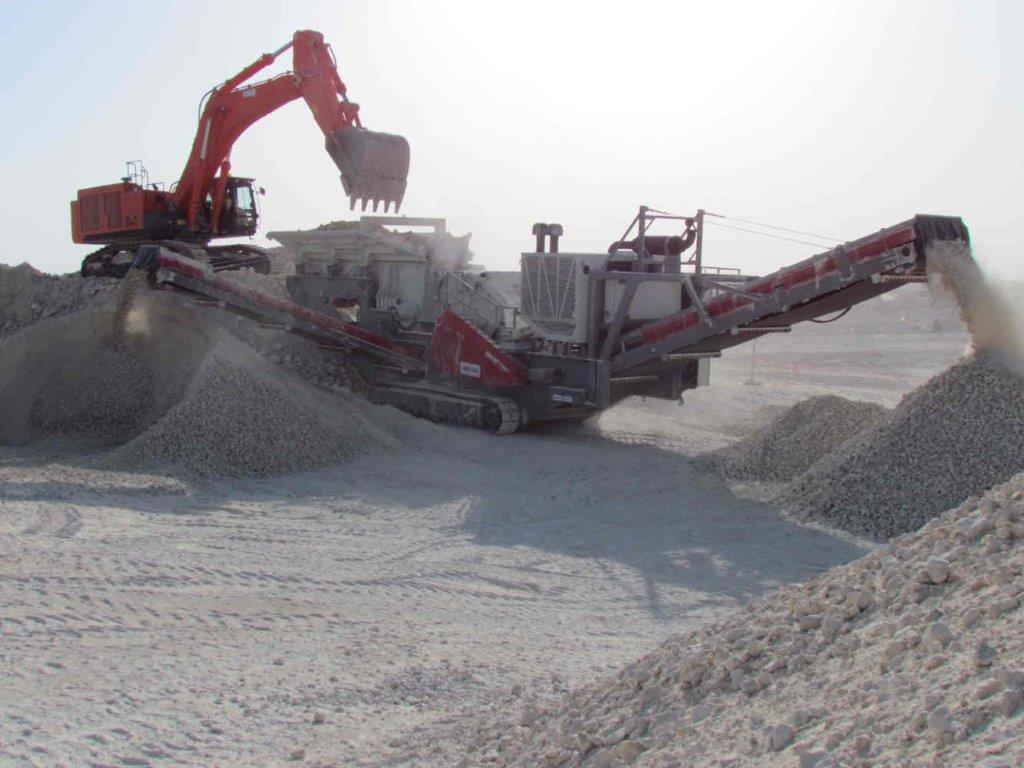

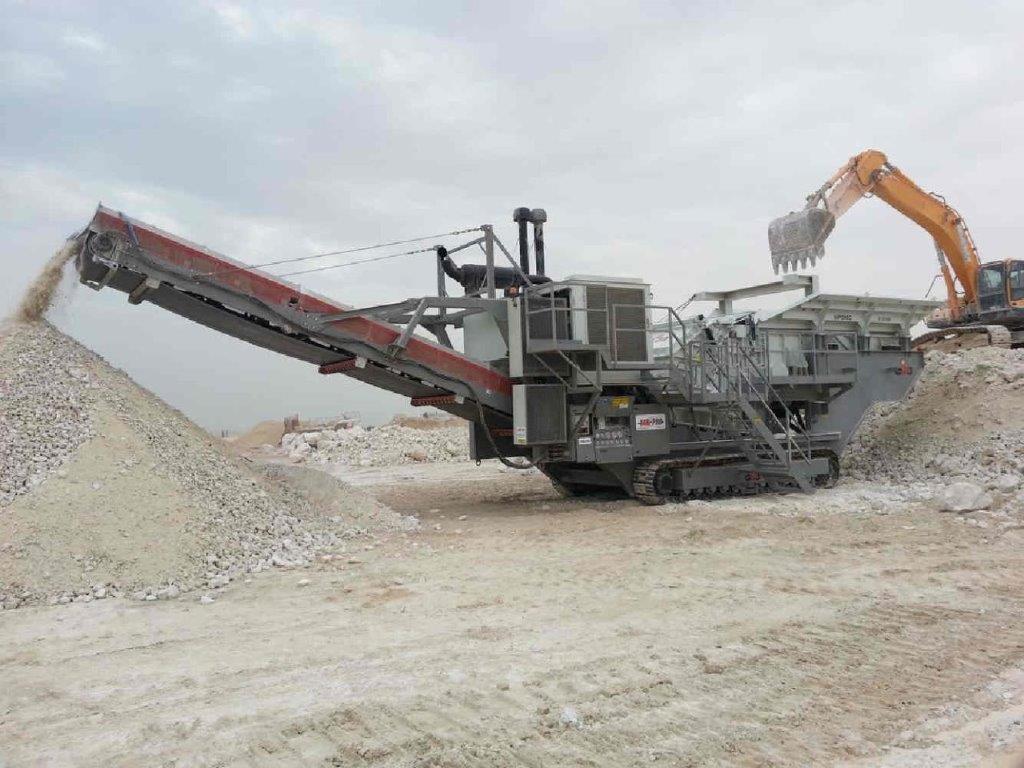

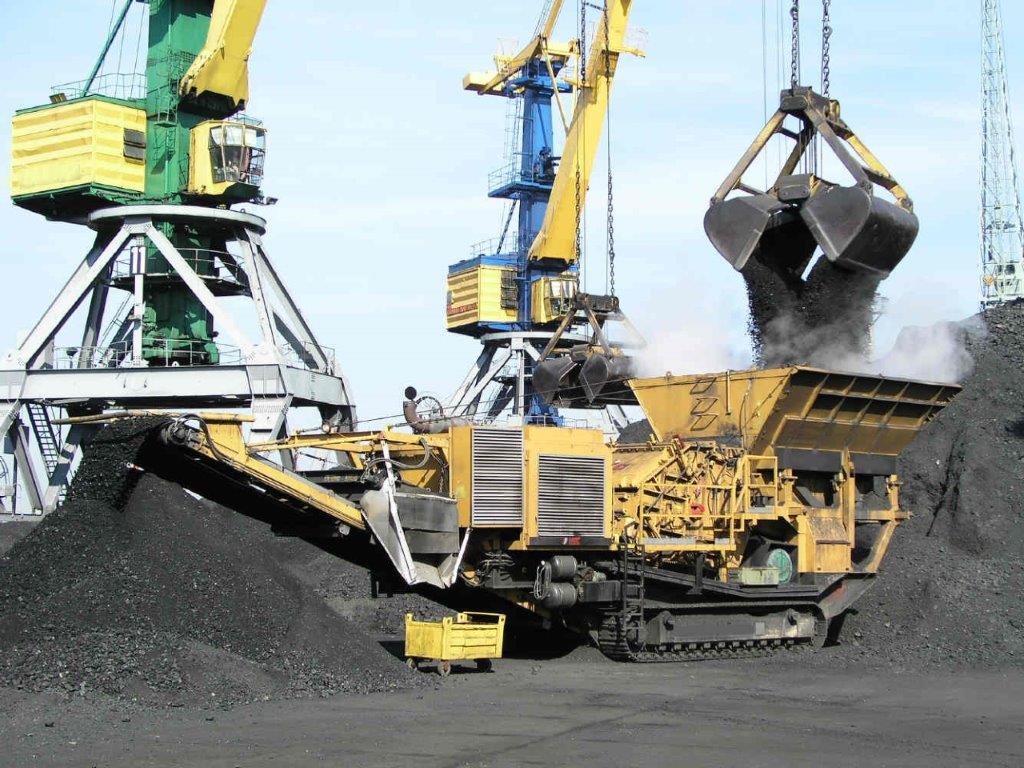

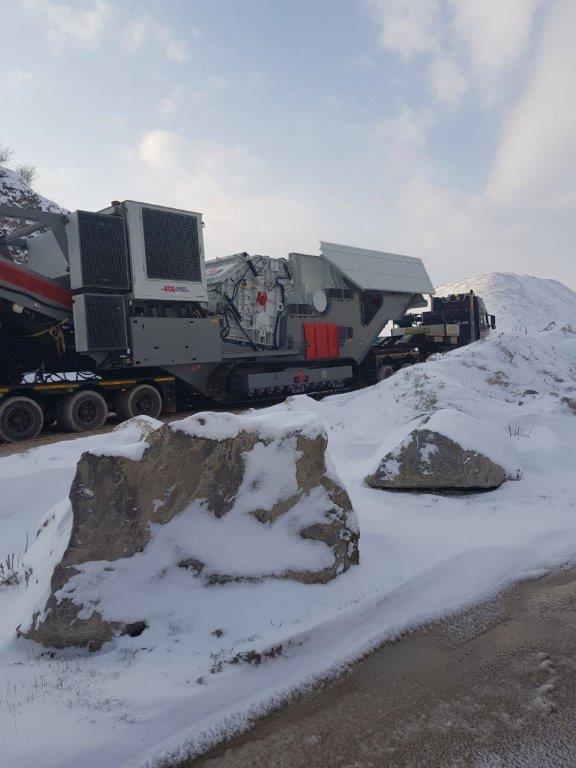

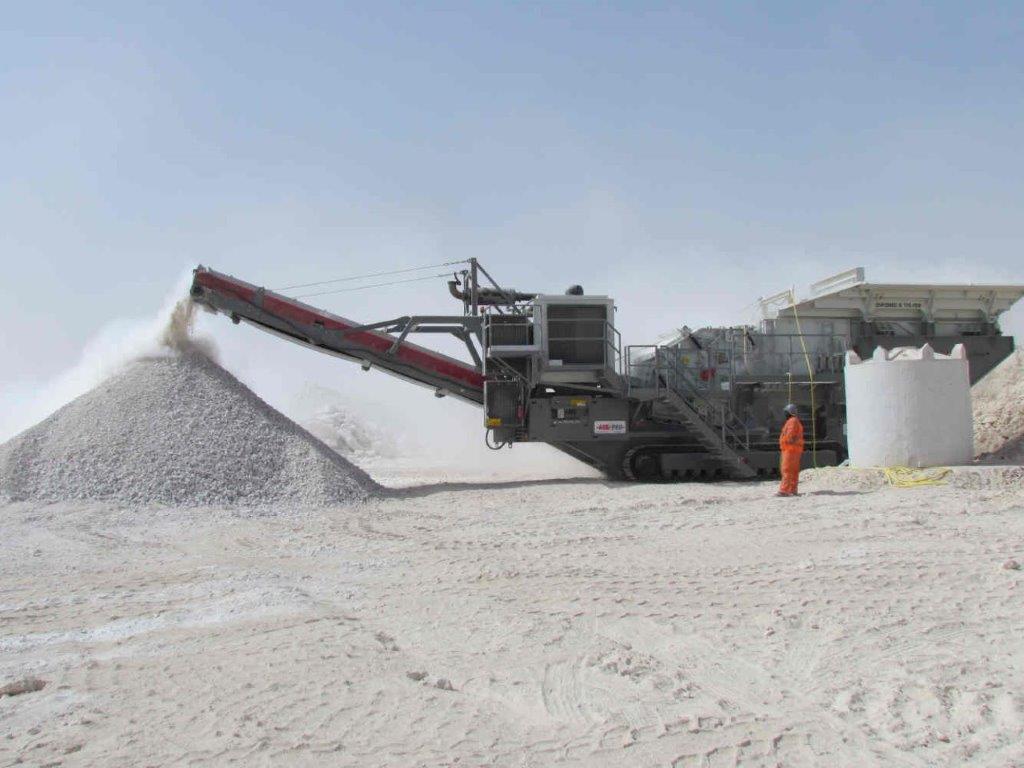

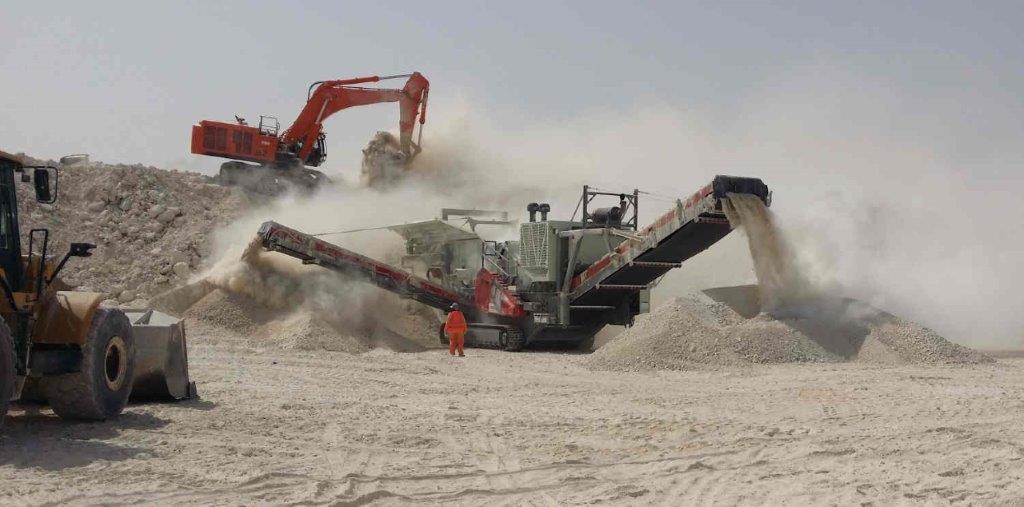

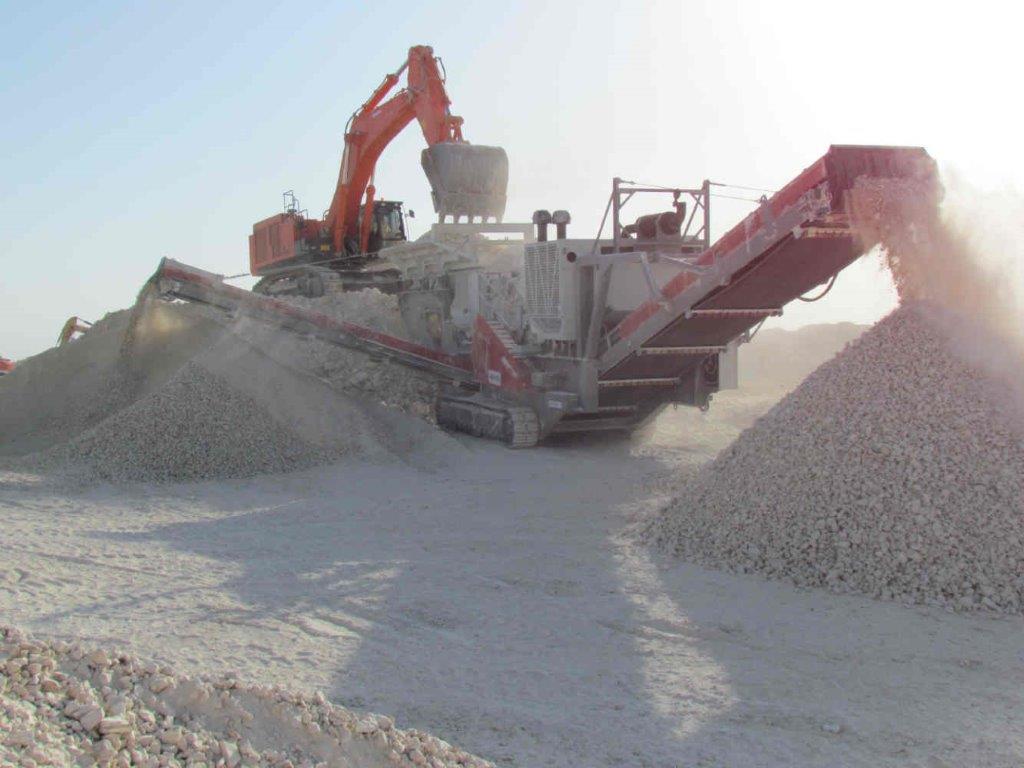

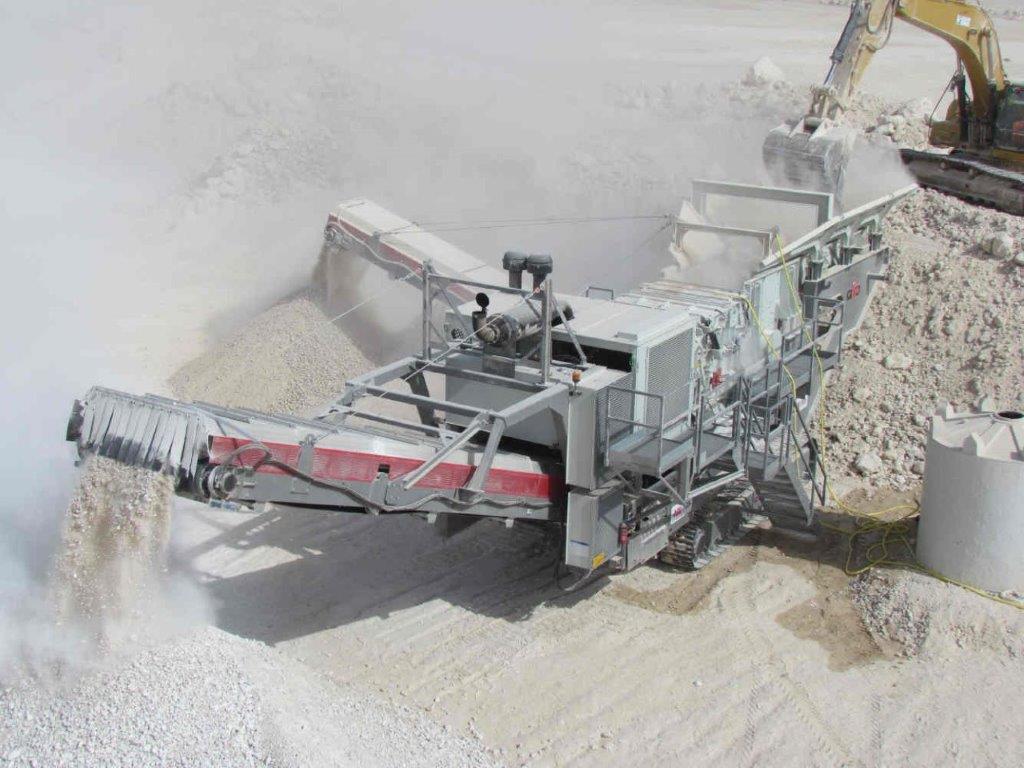

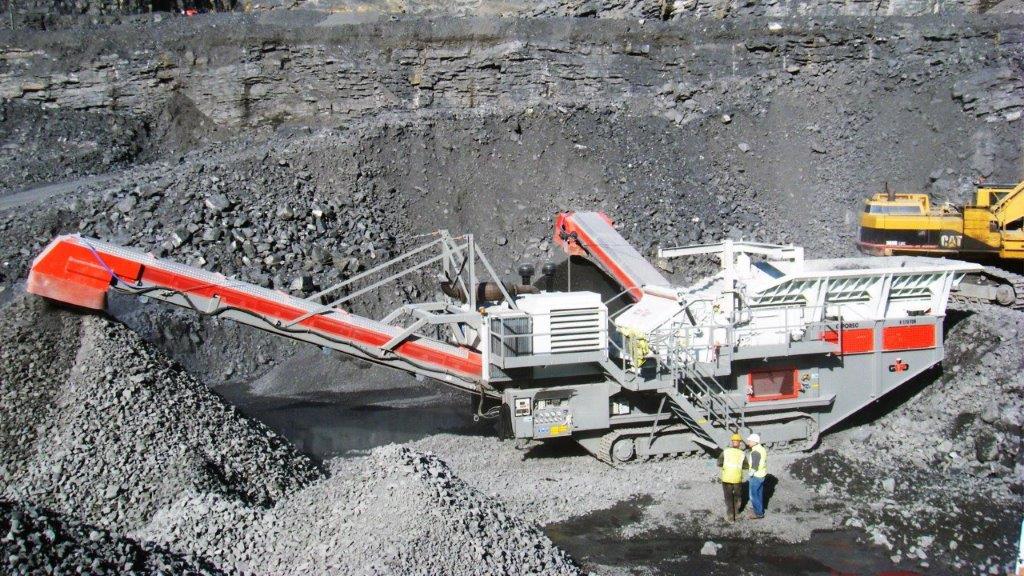

GIPO P 170 Impact Crusher

Impactor Width:
1700mm
Weight:
87,000 - 96,000kg
Engine:
CAT C18
Overview
The heavyweight among the GIPO impact crushing plants has led the fleet for many years and offers an impressive throughput. As on all GIPO plants, blockages are prevented by the proven material flow concept; the internal width of conveying elements increases in the material flow direction.

GIPO impact crushers offer a range of customer-specific options that are unique and almost unlimited. Whether additional hopper height increase, apron conveyor, roller grizzly or an extended pre-screen, the plant is adapted to your needs.

You can choose between a conventional diesel engine, an electrical drive system or even a combined drive system. A further highlight is the ferrous metal discharge in the longitudinal direction, which has been a unique feature of GIPO plants for years.

Features

1700mm width x 1300mm diameter impact rotor.
1670mm width x 925mm height crusher inlet.
CAT C18 700Hp engine.
Robust feed hopper design made of highly wear-resistant material.
Feed hopper can be enlarged with wall attachments for more volume.
Size of crusher inlet can be increased hydraulically.
Universal impact crusher with various equipment options.
No narrowing and constriction thanks to wide discharge channel.
Crusher discharge conveyor designed with maximum width for optimal material flow.

Tech Specs

Engine
CAT C18 700Hp

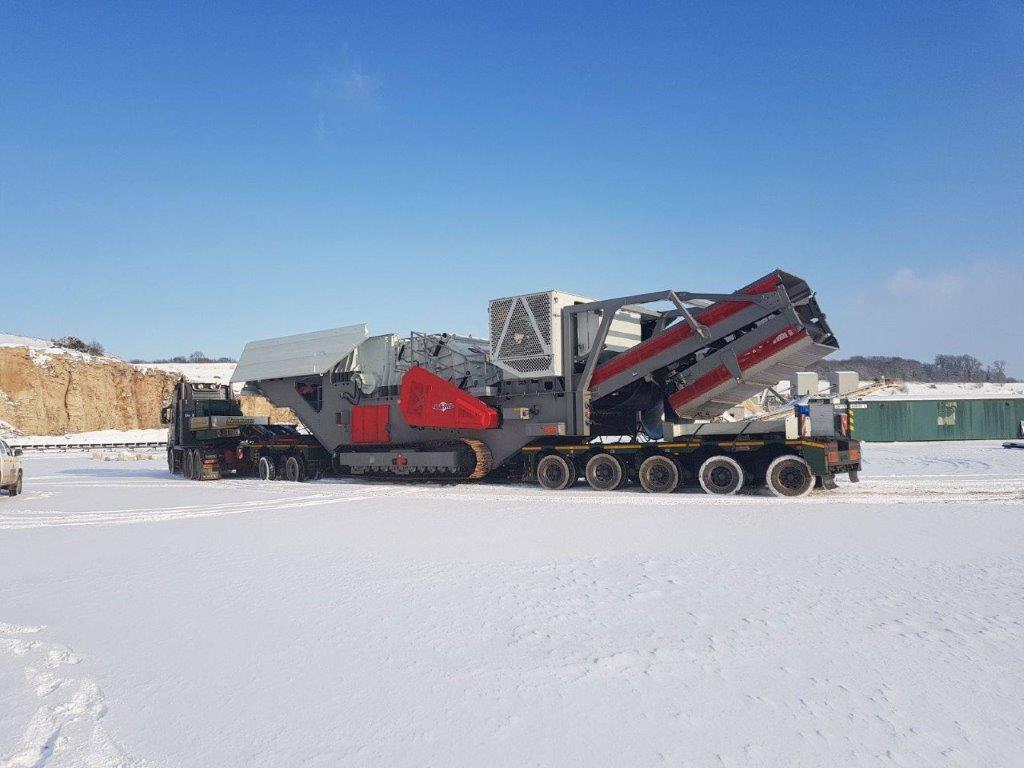

Transport Height
4m
Transport Length
17.15m
Transport Width
3.6m
Weight
87,000kg - 96,000kg
Impact Rotor
1700mm width x 1300mm diameter
Crusher Inlet
1670mm wide x 925mm height
Feed Capacity
up to 1100TPH
Feeder Size
9m³
