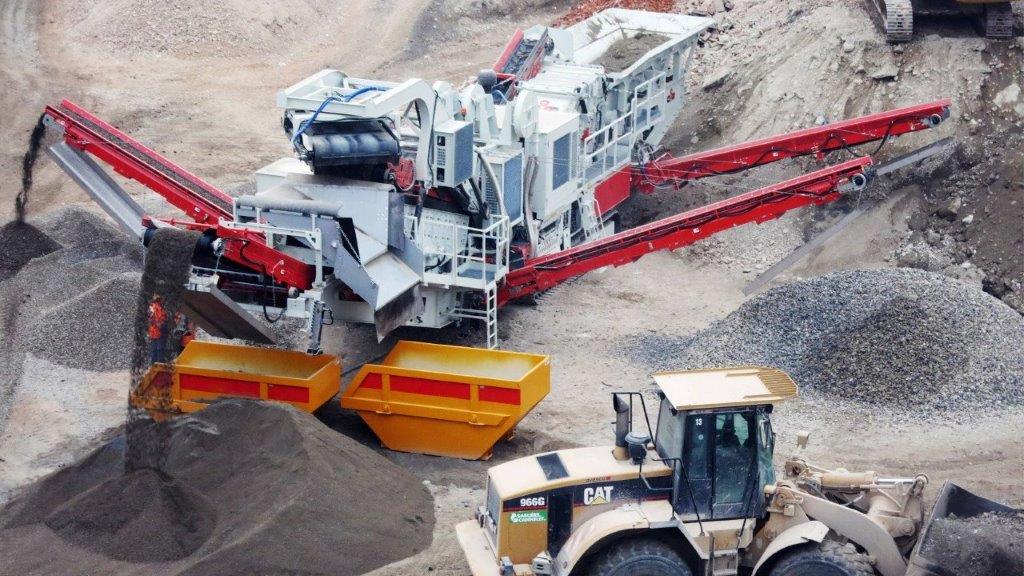

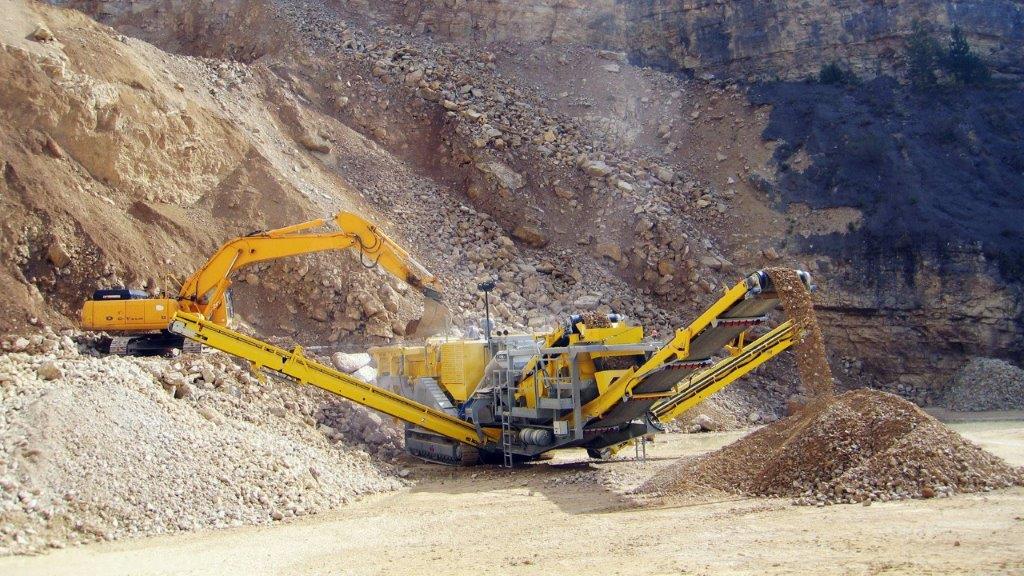

GIPO P 110 KOMBI Impact Crusher

Impactor Width:
1100mm
Weight:
80,000 - 85,000kg
Engine:
CAT C15
Overview
For many years the GIPO P 110 has impressed with its reliability and durability. GIPO impact crushing plants are suitable for any application and the performance, proven technology and ease of operation never fail to impress.

As on all GIPO plants, blockages are prevented by the proven material flow concept; the internal width of conveying elements increases in the material flow direction.

GIPO impact crushers offer a range of customer-specific options that are unique and almost unlimited. Whether additional hopper height increase, apron conveyor, roller grizzly or an extended pre-screen, the plant is adapted to your needs.

Features

1100 width x 1200mm diameter impact rotor.
1070mm width x 925mm height crusher inlet.
CAT C15 540Hp engine.
Robust feed hopper design made of highly wear-resistant material.
Feed hopper can be enlarged with wall attachments for more volume.
Size of crusher inlet can be increased hydraulically.
Universal impact crusher with various equipment options.
No narrowing and constriction thanks to wide discharge channel.
Crusher discharge conveyor designed with maximum width for optimal material flow.

Tech Specs

Engine
CAT C15 540Hp
Transport Height
3.85m
Transport Length
22m
Transport Width
3.2m
Weight
80,000kg- 85,000kg
Impact Rotor
1100 width x 1200mm diameter
Crusher Inlet
1070mm wide x 925mm height
Feed Capacity
up to 450TPH
Feeder Size
5m³
Download Full Specs
