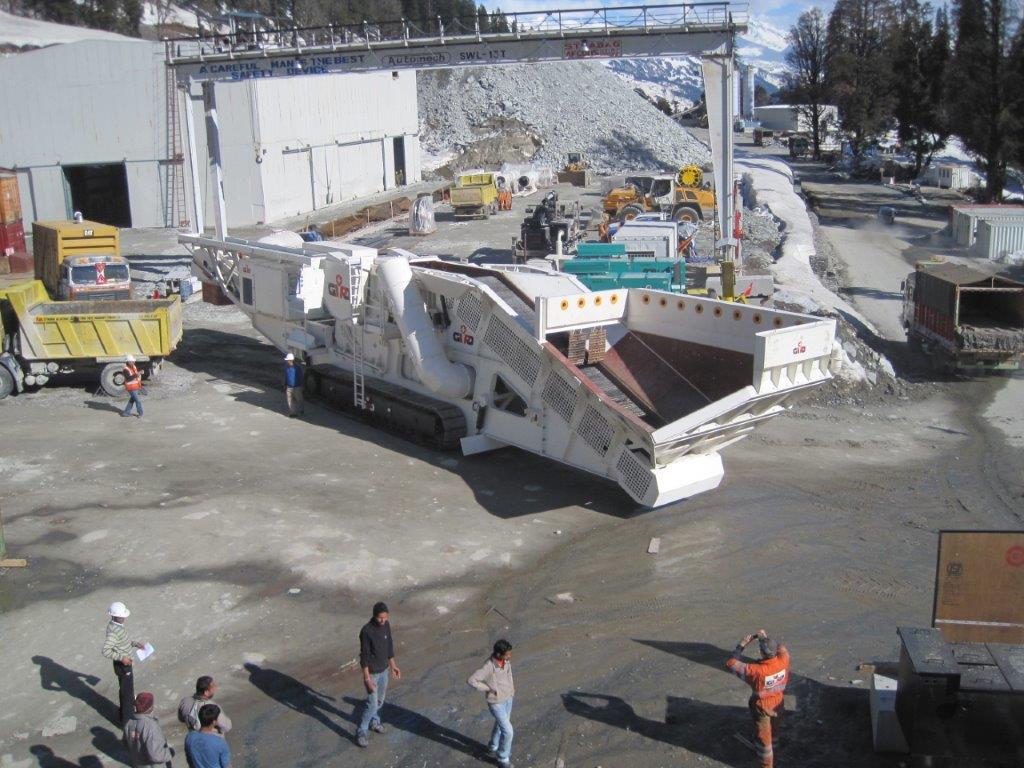

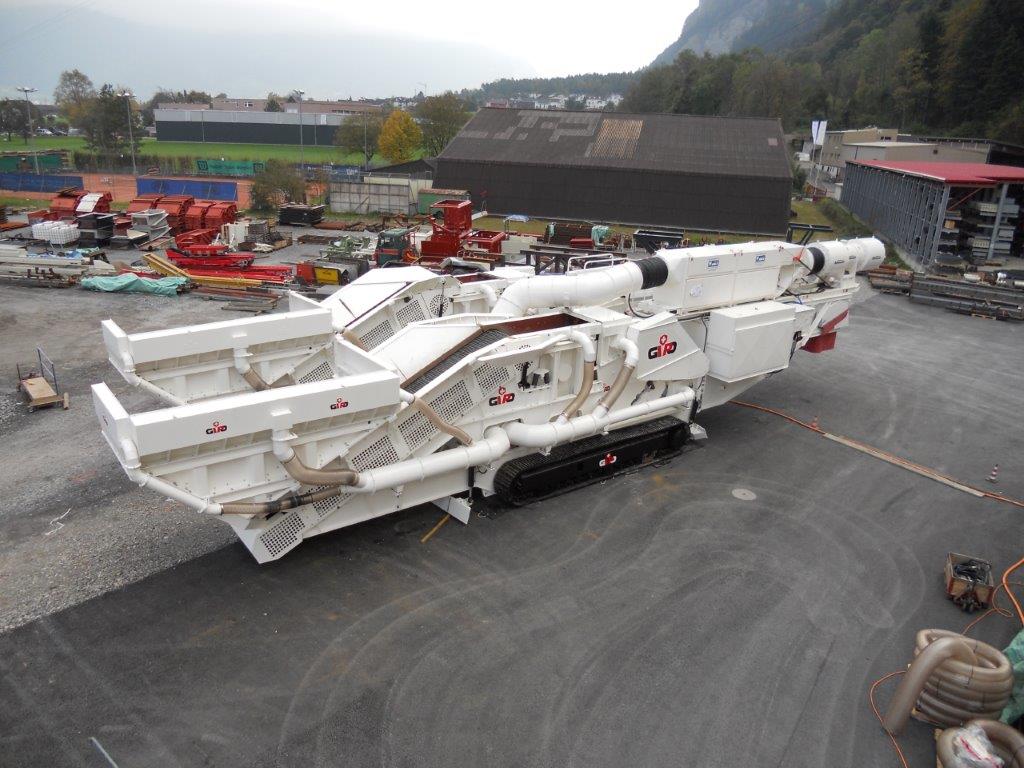

GIPO B 1290 Jaw Crusher

Jaw Size:
1200mm x 900mm
Weight:
73,000 - 77,000kg
Engine:
CAT C13
Overview
The powerful, durable and reliable GIPO B 1290 shines in tougher applications with its robust design – proven engineering ingenuity fine-tuned to the optimum. These plants are suitable for the harshest usage in quarrying and also for recycling construction materials.

GIPO jaw crushers offer a range of customer-specific options that are unique and almost unlimited. Whether hopper wearing lining, apron conveyor feed or a coarse pre-screen, the plant is adapted to your needs.

You can choose between a conventional diesel engine, an electrical drive system or even a combined drive system. A further highlight is the ferrous metal discharge in the longitudinal direction, which has been a unique feature of GIPO plants for years.

Features

1200mm width x 900mm diameter jaw.
CAT C13 469Hp engine.
Robust designed feed hopper wall made of highly wear-resistant material.
Hydraulically lockable hinged hopper walls.
Highest quality materials for jaw housing, arm and bearings.
High throughput thanks to optimal crushing chamber geometry.
Crusher discharge conveyor designed with maximum width for optimal material flow.

Tech Specs

Engine
CAT C13 469Hp
Transport Height
4.2m
Transport Length
17.5m
Transport Width
3.2m
Weight
73,000kg - 77,000kg
Crushing Chamber
1200mm width x 900mm diameter
Feed Capacity
up to 540TPH
Feeder Size
8m³
Download Full Specs
