The Terracon Maverick 224 Portable Blending Plant is
a high-performance blending machine engineered for
efficiency and versatility. Capable of producing 1,000+
tonnes per hour, it is handles a wide range of
materials including aggregates, compost, soils, sand,
sawdust and coal. With a robust Caterpillar diesel
engine, the MV224 combines rapid set-up with
adaptable blending technology, delivering
outstanding productivity.

Easily blend two materials at a high volume with the Maverick MV224. Features a continuous weighing system which mixes with precision. Variable speed mixing shaft and conveyors, allowing for configuration for a range of applications. Innovative controls enabling users to produce accurately weighed blends. Batch function accurately weighs out a predetermined amount of material.

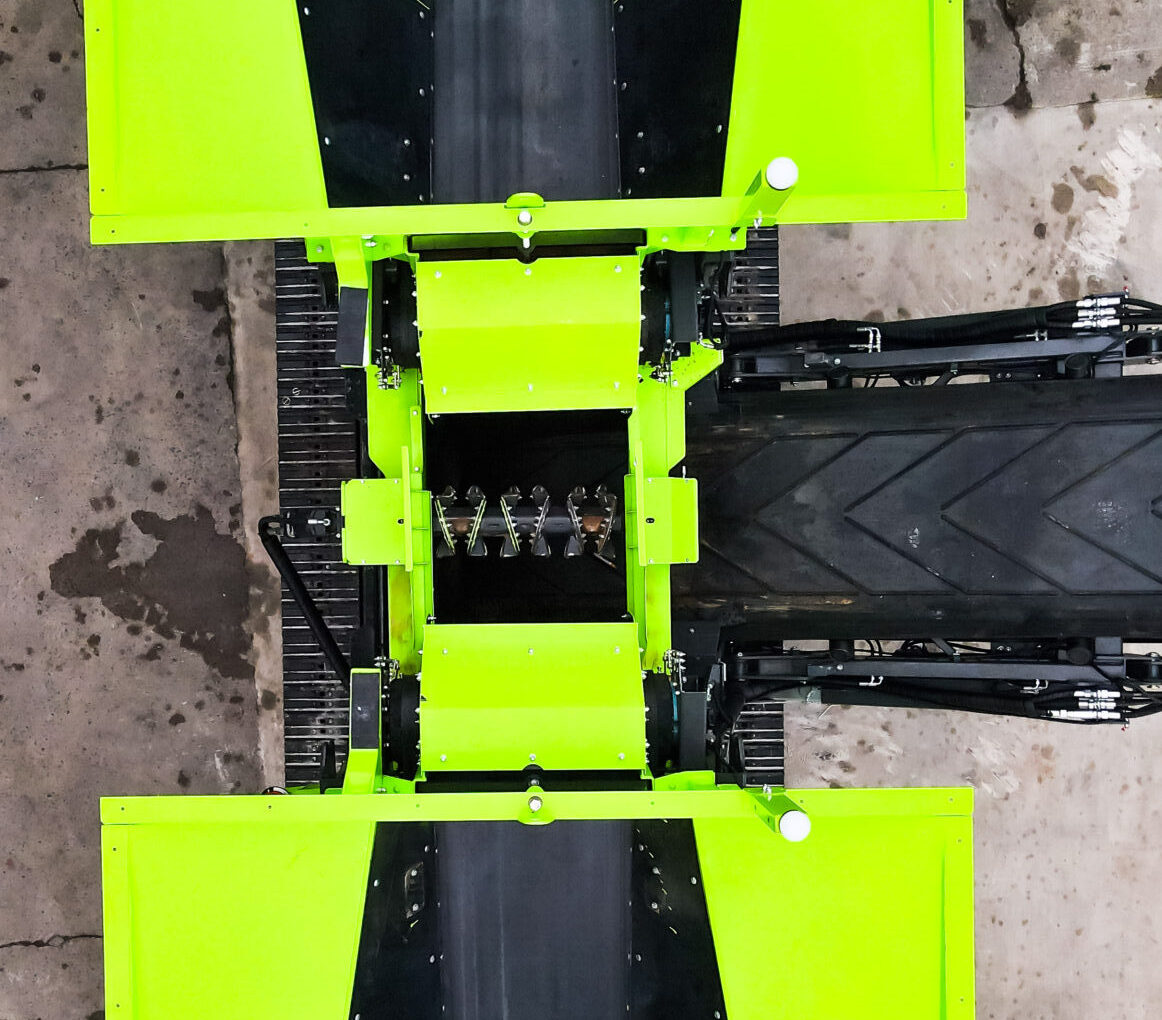

The travelling mixing shaft can be positioned out of the flow of material when mixing larger particles. Level sensors detect how much material is in the hoppers, which is signalled to the operator through a traffic light system. The automated control system halts blending when the hoppers run empty and restarts automatically when material is refilled. These automated features enable the plant to be operated by a single operator or shovel, without leaving the cab.

Heavy duty product conveyor with double drive with a high discharge height, making it easy to configure with other equipment and to maximise stockpile capacity. This reduces vehicle movements for lower operational costs and enhances site health and safety while lowering carbon emissions.
